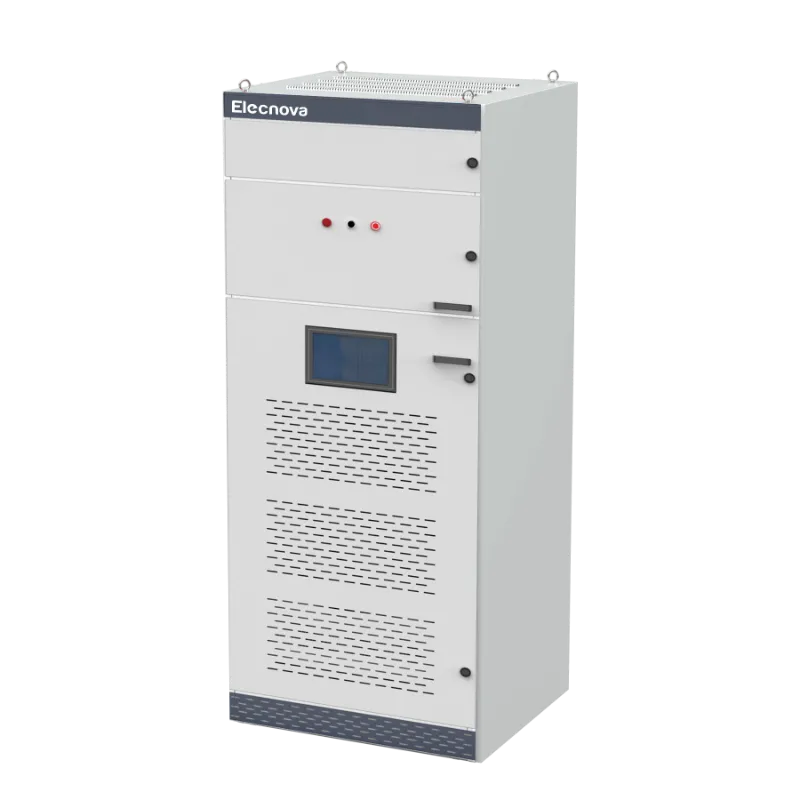

Active Harmonic Filter

Advantages:

Harmonic compensation up to the 51th order

Load balancing between phases and neutral

Compact design, three-level topology

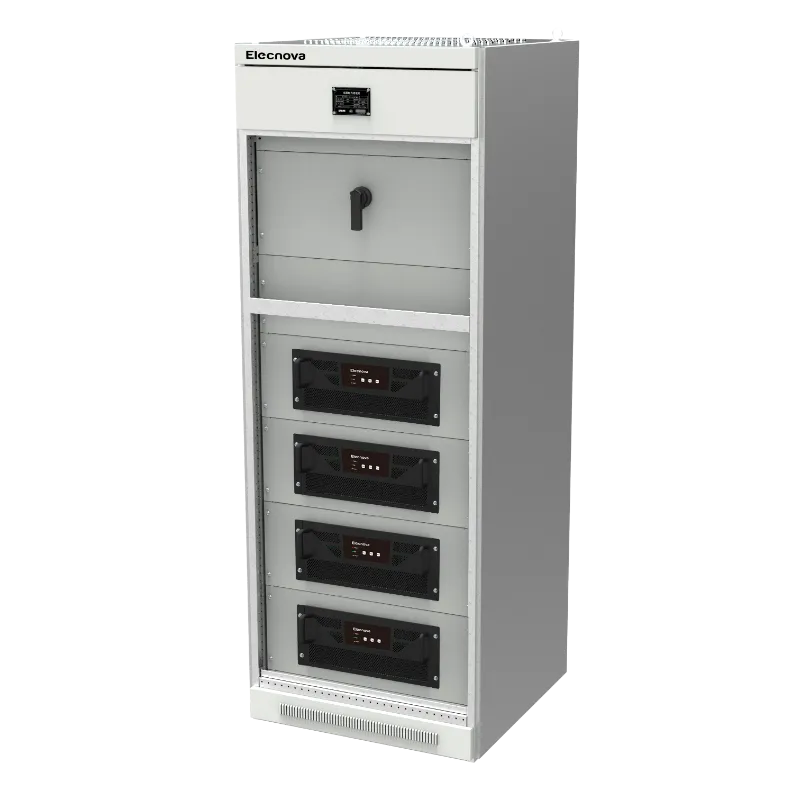

Expandable up to 12 modules in parallel

4inch/7inch/10inch simple and user-friendly HMI

Silent operation ≤65dB(A)

RS485/Ethernet communication optional

Inquire Now +

Overview:

SNA-AHF series active harmonic filter is a new type of power quality improvement production for dynamically filtering harmonics and compensating reactive power. It can filter and compensate harmonic (variable in orders and frequency) and dynamic reactive power in real time. It is used to overcome the shortcomings of conventional harmonic suppression and reactive power compensation methods such as passive harmonic filters, and achieve the harmonic filtering function and reactive power compensation function of the system.

Application scenarios

Industrial: Rectifiers, VFD, electric arc furnaces, large UPS, medium frequency furnaces

Commercial building: LED lights, computers, UPS, elevators, copiers, variable frequency air conditioning

Hospital: Magnetic resonance imaging, CT machine, X-ray machine, hemodialysis machine

Industries

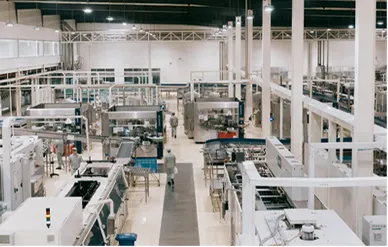

Industrial

Rectifiers, VFD, electric arc furnaces, large UPS, medium frequency furnaces

Commercial Building

LED lights, computers, UPS, elevators, copiers, air conditioning

Hospital

Magnetic resonance imaging, CT machine, X-ray machine, hemodialysis machine

Technical Specifications

220V,400V 3P3W/3P4W

480V,550V,690V 3P3W

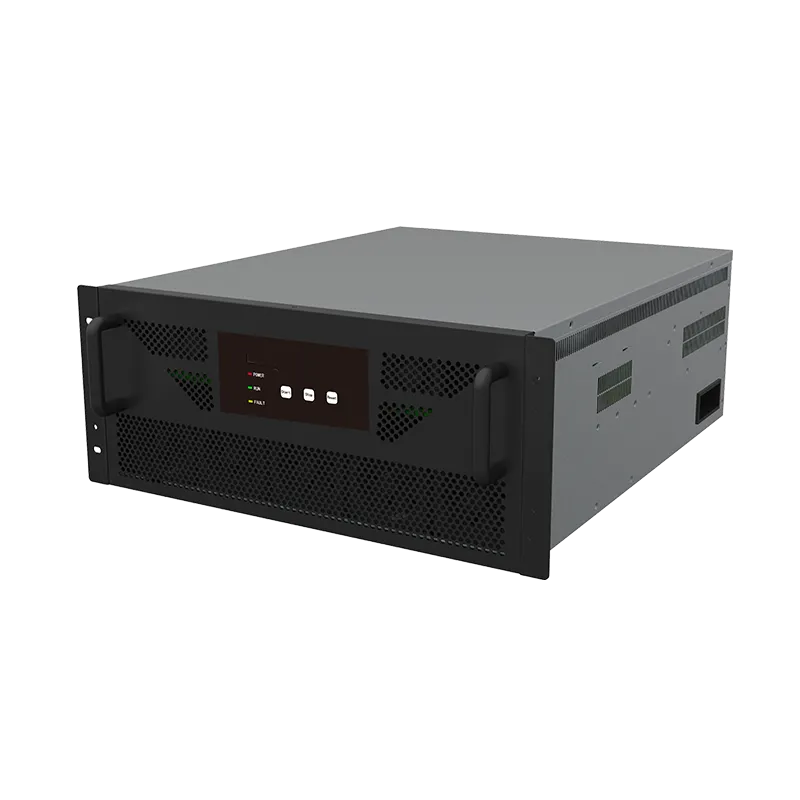

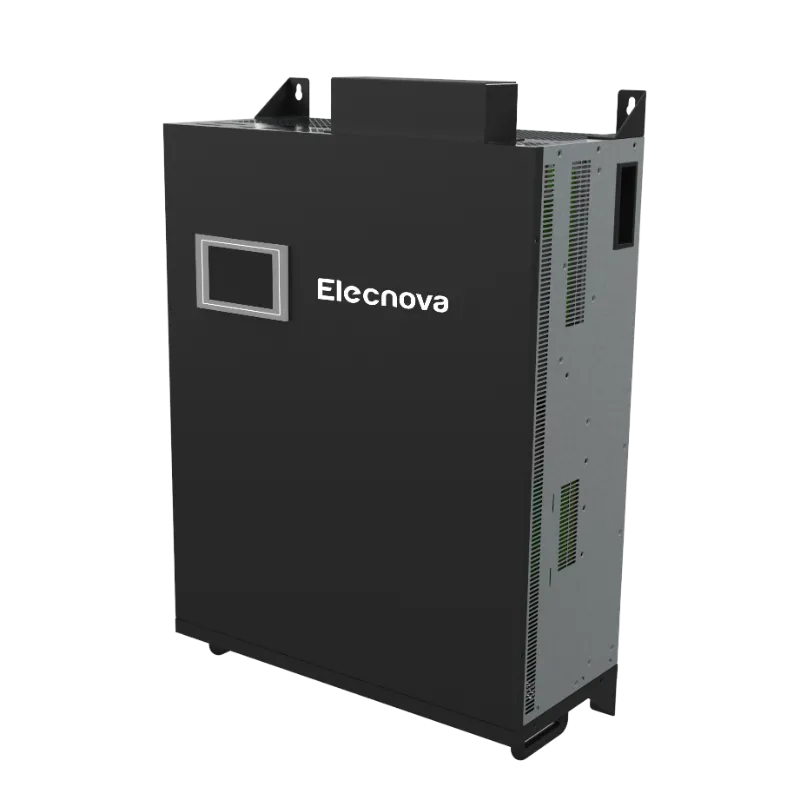

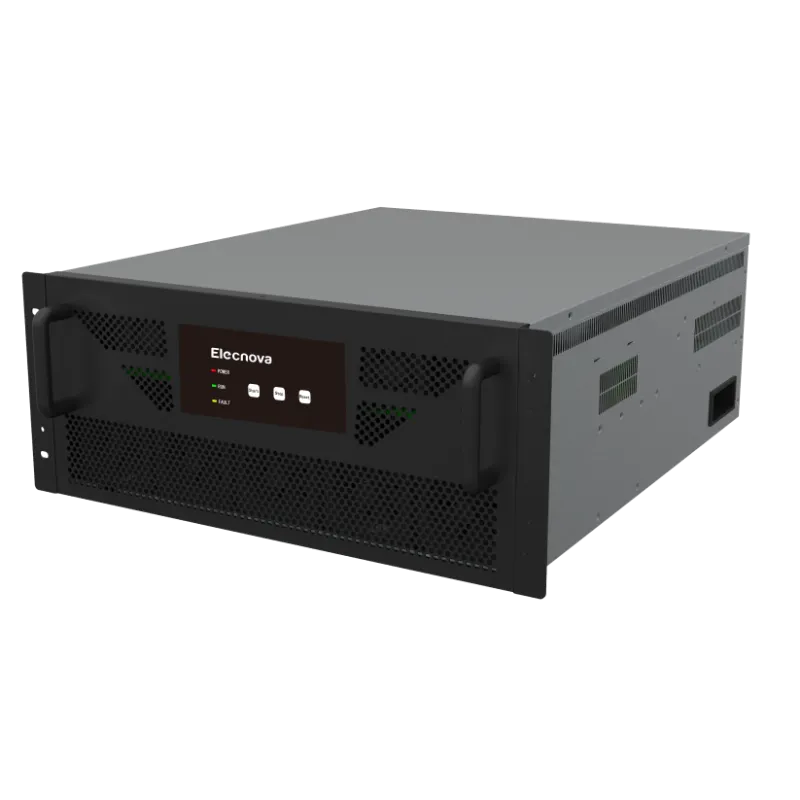

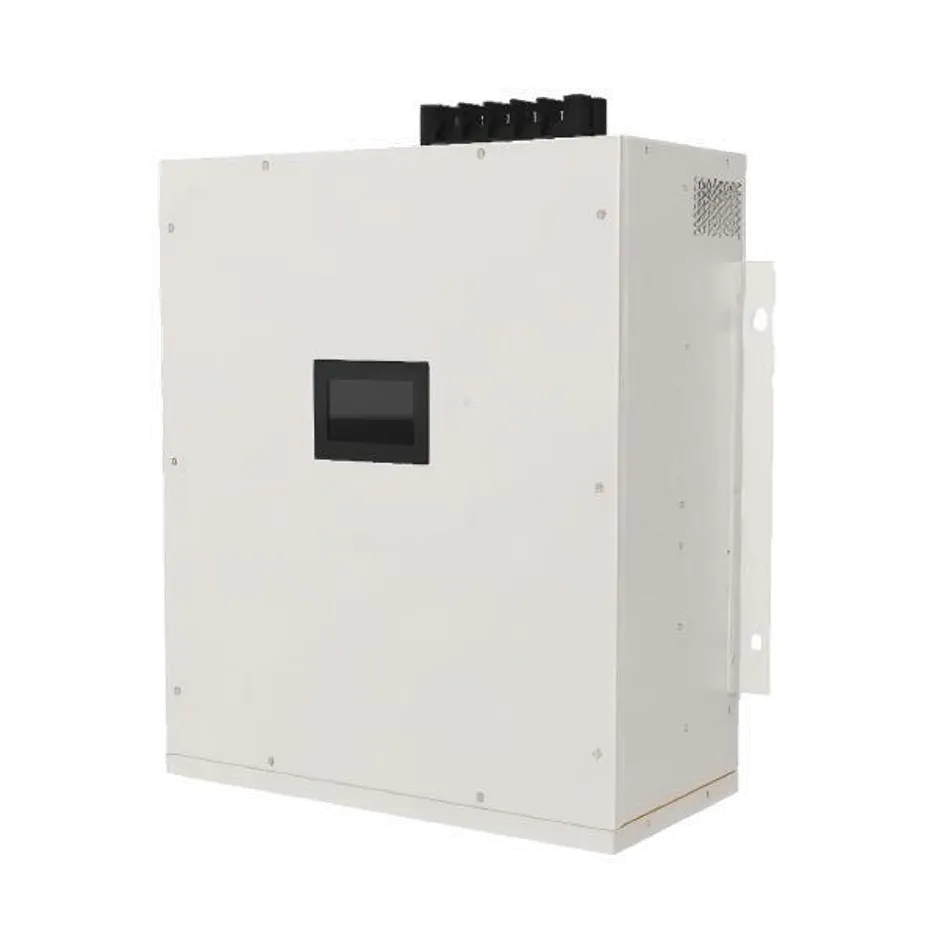

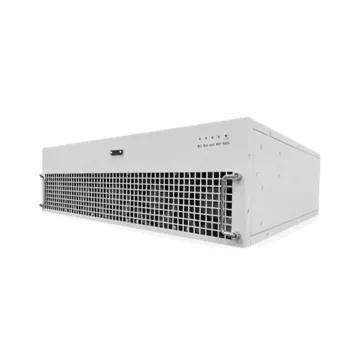

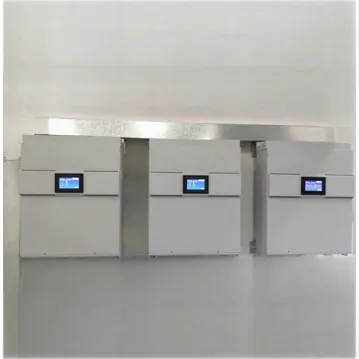

Mounting type	Wall mounted	Rack mounted	Rack mounted
Network voltage range	±10%
Nominal current (A)	15/30/50/75/100/150		50/100
Frequency	50/60Hz (±5%)
Harmonic compensation	2nd ~ 51st harmonic order
Efficiency	≥97%
Response time	<10ms
Circuit topology	Three-level topology
Switching frequency	20 kHz - Reaction time: Approximately 50 ps
Parallel operation	Maximum of 12 units can be combined
Typical power loss	<3% (depending on the load)
Compensation mode	Harmonic, reactive power, unbalance
Target power factor	Adjustable from -1 to 1
Display	4.3inch/7inch/10 inch HMI
Communication ports	RS485 / Ethernet
Noise level	≤65dB
Operating Temperature	-20℃ to 45 ℃
Humidity	5% to 95% RH, non-condensing
Protection class	IP20
Design/Approvals	EN 61000-6-2:2005+AC:2005 EN 61000-6-4:2007+A1:2011 EN 50178:1997 IEEE519
Certification	CE
