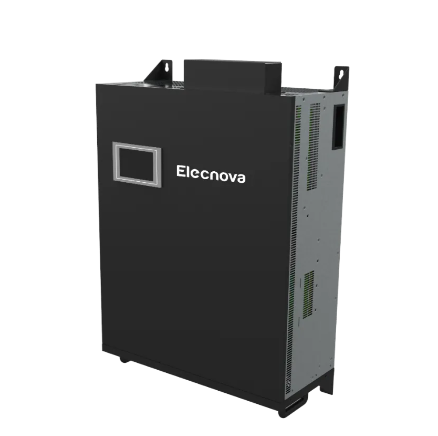

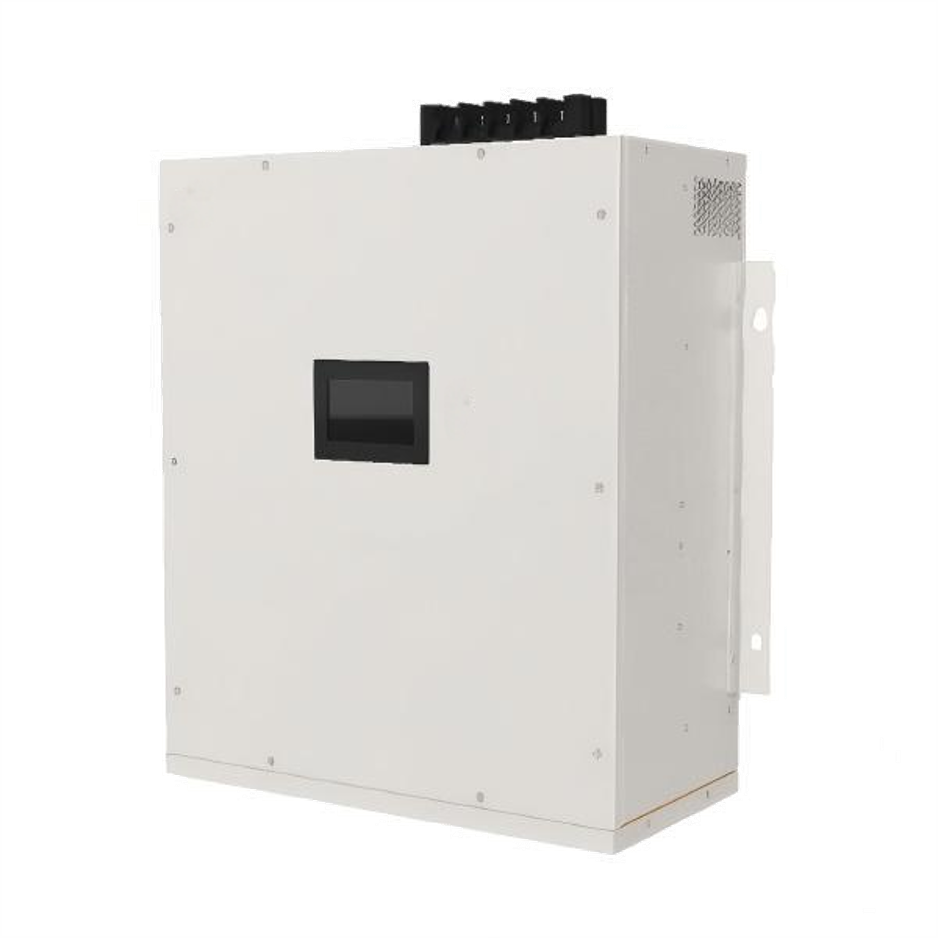

In modern electrical power systems, managing power quality and optimizing efficiency is essential for ensuring reliable and cost-effective operation. One of the key tools used to enhance power quality is the Static Var Generator (SVG). SVGs are dynamic devices designed to provide fast, efficient, and continuous reactive power compensation. Unlike traditional solutions, such as capacitor banks or synchronous condensers, SVGs offer a more flexible and precise approach. In this article, we’ll explore the advantages of using a Static Var Generator in electrical systems.
1. Continuous and Dynamic Reactive Power Compensation
One of the primary functions of a Static Var Generator is to provide real-time reactive power compensation, which is crucial for maintaining voltage stability and improving the overall power quality in electrical systems. Reactive power is needed to support the voltage that allows current to flow through the system, but excess or insufficient reactive power can lead to inefficiencies, voltage instability, and even equipment damage.
Dynamic Response: Unlike traditional capacitor banks, which offer fixed compensation, an SVG adjusts in real-time to provide the exact amount of reactive power needed at any given moment. This dynamic response ensures that voltage fluctuations and power imbalances are minimized.
Continuous Operation: SVGs operate continuously without the need for manual adjustments or downtime, offering a stable and reliable supply of reactive power throughout the system.
2. Improved Voltage Stability
Voltage instability can occur when there are fluctuations in the reactive power supply, leading to problems like voltage sag, flicker, or overvoltage. These issues can affect the performance of sensitive equipment, causing failures or operational disruptions. SVGs help maintain a constant voltage level by quickly adjusting the reactive power supply in response to any fluctuations, thus preventing these instability issues.
Real-time Voltage Regulation: SVGs maintain optimal voltage levels across the grid or specific parts of the electrical system, reducing the risk of voltage sags and surges that can harm equipment.
Enhanced Power Factor: By compensating for reactive power needs, SVGs improve the overall power factor of the system, reducing the loss of energy and improving system efficiency.
3. Increased System Efficiency and Reduced Losses
One of the key benefits of using an SVG is the improvement in system efficiency. By providing reactive power compensation only when necessary, SVGs minimize energy losses associated with inefficient power flow. In systems that rely on traditional methods of reactive power compensation, such as capacitor banks, energy is often wasted when excess reactive power is supplied, leading to unnecessary losses.
Optimal Reactive Power Supply: SVGs only supply reactive power when needed, optimizing the system’s performance and reducing energy waste, which can lead to significant savings over time.
Reduced Transmission Losses: By maintaining a high power factor and voltage stability, SVGs reduce the transmission losses that typically occur when power quality is poor.
4. Fast and Precise Control
Traditional methods of reactive power compensation, such as capacitor banks or synchronous condensers, often have slow response times and can be less precise in their operation. This can result in delayed reactions to power fluctuations, which may lead to system instability. In contrast, SVGs are equipped with advanced power electronics that provide extremely fast and precise control over reactive power compensation.
Fast Reaction Time: SVGs can respond to changes in power quality in a fraction of a second, making them ideal for handling rapid voltage fluctuations that occur in systems with varying loads.
Precise Control: The precision of SVGs allows for fine-tuned reactive power control, providing an optimal solution for systems with highly dynamic loads or sensitive equipment.
5. Reduced Size and Space Requirements
Traditional reactive power compensation devices, such as capacitor banks and synchronous condensers, can be bulky and require significant space. SVGs, however, are compact and require much less physical space to install and operate. This can be a significant advantage in environments where space is limited or when upgrading older systems.
Compact Design: The smaller footprint of an SVG makes it easier to integrate into existing systems without requiring large installations or additional infrastructure.
Lower Maintenance: SVGs have fewer moving parts compared to traditional solutions like synchronous condensers, which reduces the need for maintenance and makes them more reliable over time.
6. Integration with Renewable Energy Systems
The integration of renewable energy sources, such as solar or wind power, into the grid can cause fluctuations in voltage and frequency due to their variable nature. SVGs are particularly effective in stabilizing power quality in systems with renewable energy sources. They can adjust the reactive power supply in real-time, helping to smooth out the power fluctuations that come with intermittent energy generation.
Renewable Energy Integration: SVGs help maintain voltage and power quality in grids that incorporate renewable energy, enabling better control and more efficient use of variable energy sources.
Support for Grid Stability: In addition to voltage stabilization, SVGs provide the necessary support to ensure that renewable energy systems can be effectively integrated into the grid without causing disruption to power quality.
7. Enhanced Grid Reliability and Flexibility
One of the standout advantages of using a Static Var Generator is its ability to improve grid reliability and flexibility. Because SVGs can provide precise, fast, and dynamic compensation, they help maintain grid stability even under fluctuating conditions. This is especially important in critical applications where power reliability is paramount.
Grid Support: SVGs enhance the reliability of the power grid by ensuring stable voltage levels and reducing the risk of outages or system failure caused by poor power quality.
Flexible Operation: SVGs can be easily adjusted to meet the specific needs of different parts of the electrical system, making them adaptable to various applications and power demands.
8. Conclusion: The Benefits of Static Var Generators
Static Var Generators (SVGs) offer a host of advantages for electrical systems, from dynamic and precise reactive power compensation to improved power quality, efficiency, and grid reliability. Their ability to respond quickly to fluctuations in power and their compact, low-maintenance design make them an attractive choice for industries, utilities, and renewable energy systems. As power demands grow and the need for stable and efficient systems increases, the use of SVGs will continue to play a crucial role in enhancing the performance and reliability of electrical grids worldwide.
